FEATURES

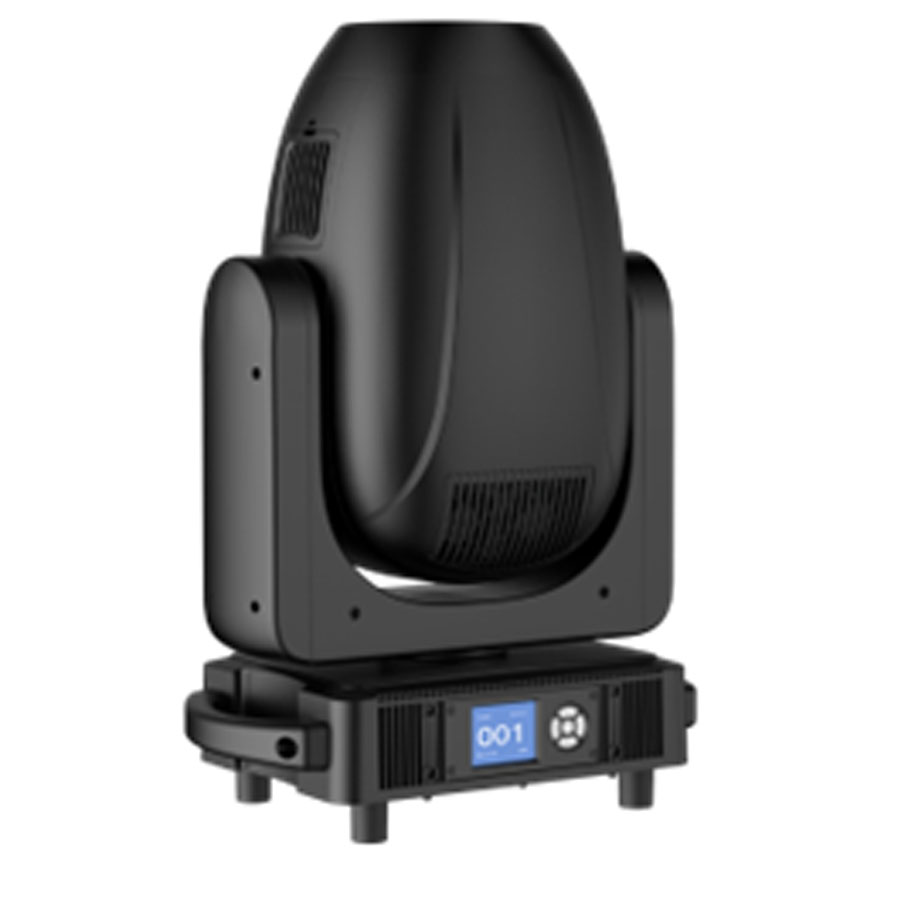

F PROFILE 900

is a moving head light with beam spot wash profile 4 in 1 function.

The optical system adopts high-precision optical components. With lens diameter of 140mm, the fixture can output light of long projection distance with high illumination. It can produce full beam and clear spot.

The gobo module consists of 2 rotation gobo wheel.It has multiple pattern styles with high clarity and color consistency from the center to the edge of the pattern.The cutting module can rotate ±60°, the cutting image is clear without distortion. The output illuminance of SUPER SCOPE II can reach  24500 Lux@10m.The product is small in size, light in weight, accurate in pan & tilt positioning, and fast in response.

It's suitable for theaters, TV stations, large-scale concerts, gymnasiums and other high-end performance sites.

OPTICAL

Light source : 520W white LED module

ZOOM angle : 3.8° to 50 °

Front lens diameter : 140mm

Output color temperature : 7000K

CRI : RA≥72 (High CRI filter up to 88)

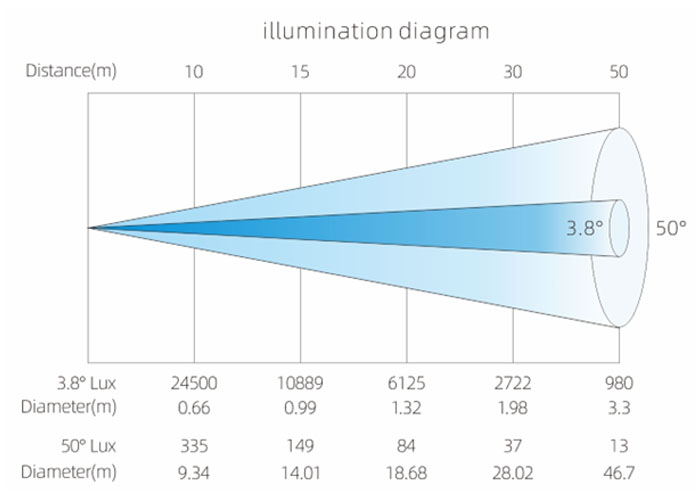

Illuminance : 24500 Lux@10M

Total lumen output : 20000Lm

LED source life expectancy : 40,000 hours*

COLOR

C M Y : CMY infinite colour mixing

C T O : Linear CTO from 3000K to 7000K

Color wheel : 6 Color pieces + High CRI filter + Blank , can achieve bi-directional color rainbow effect,double color step gradient(liner movement), color wheel bi-directional rotation, random color mode.

GOBO

Rotation gobo wheel : 2 rotation gobo wheel ,each with 7 pcs interchangable gobo,gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;

Animation wheel : 1 dynamic animation wheel -flow water effect

Framing system : 4 blade ,each blade can be eight direction and +/- 60° degree rotation

EFFECTS

Iris : Motorized with variable pulse and random effects

Strobe : Electronic pulse strobe and random strobe

Focus : Motorized focus

Dimmer : 0 to 100% linear dimmer

Prism : 4 facet prism + 4 linear prism + bidirection rotation

Frost : 2 frost system : light frost 1° and Heavy frost 20°

LED refresh rate : 1000Hz ~ 25KHz

CONTROL

Channel mode : 42CH , 54CH

Control protocol : DMX 512, RDM ,ARTNET

DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT

Power connector : Seetronic

Hanging system : foldable light hook

Display : LCD liquid crystal screen

Noise level control : High brightness mode，Standard mode，Silent mode

SOFTWARE

Software : Software upgrade via USB or DMX interface

temperature control : Intelligent temperature control to ensure LED life

X/Y ANGLE OF MOTION

Pan : 540° 8bit/16bit

Tilt : 270° 8bit/16bit

Reset function with automatic error correction

Fixed lock : Tilt axis lock

POWER

Voltage : AC100-240V 50/60Hz

Power : 960W

Power factor : 0.99

SIZE & WEIGHT

Housing : Engineering plastic PA66

Light dimension : 442 x 267 x 656mm

N.W : 28.3kg/pcs

Carton dimension : 495 x 345 x 775mm

G.W with carton : 34.7 kg（ include foldable clamp）

Flycase dimension : 730 x 575 x 850mm

G.W with fly case : 97.9kg (2 in 1)

OTHERS

IP rate : IP20

Working environment : -10℃~ 45℃

Maximum surface temperature of the lamp body : 80°C

Maximum lamp current : 9.6A/100V; 4.36A/220V

Optional accessories : FAST LOCK

APPROVALS

The product implementation standard : GB 7000.1-2015 GB7000. 217-2008

Approved certifications : CE、RoHs

The product complies with the following EU directives:

Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU

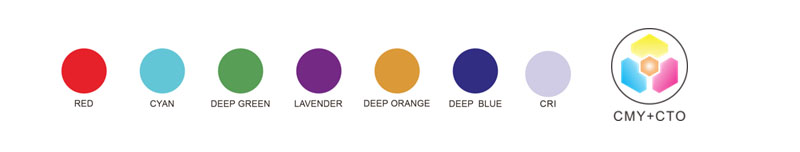

Color wheel+ CMY+CTO

Rotation Gobo

Gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm

Efeet wheel

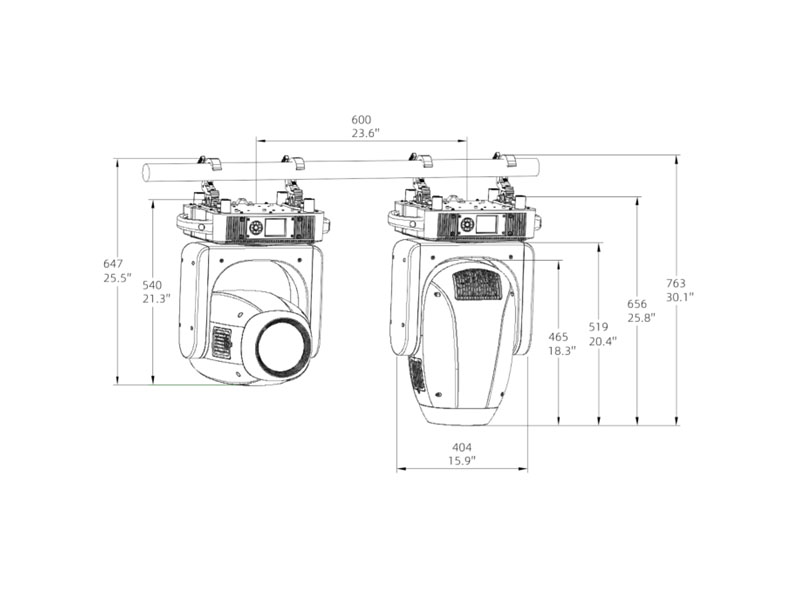

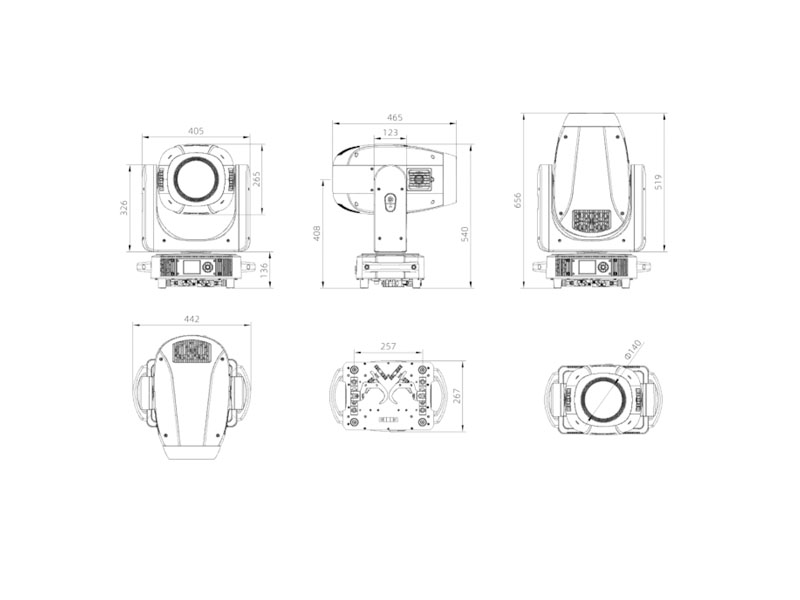

Size: unit(mm)
